Blower Motor Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)

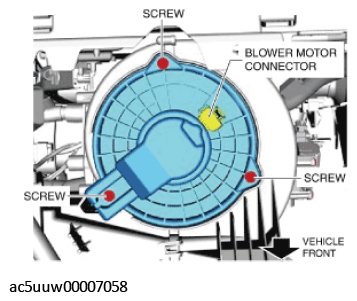

  3. Disconnect the blower motor connector.
    G11430228Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.

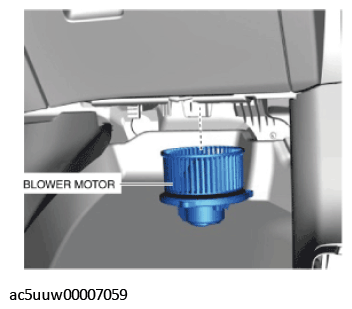

  5. Remove the blower motor.
    G11430229Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
