Mounting Rubber Installation Note

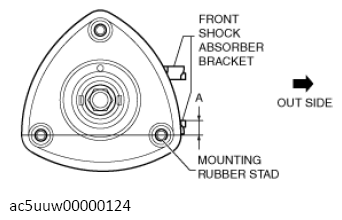

1. Install the mounting rubber so that the mounting rubber stud and the front shock absorber bracket are in position A shown in the following figure.

Courtesy of MAZDA MOTORS CORP.

A: 0°±5°
