Front Combination Light Disassembly/Assembly: Notes

Disassemble in the order shown in the figure.

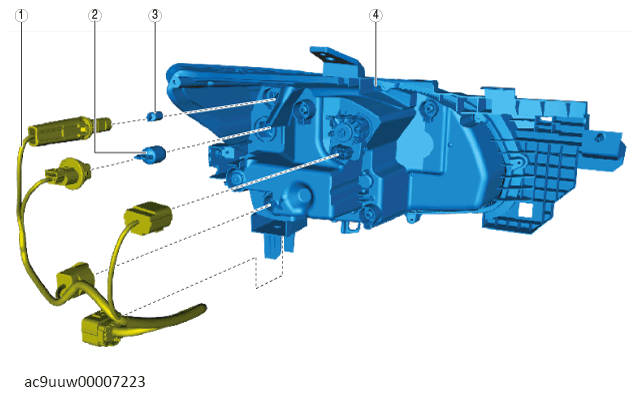

Without adaptive front lighting system (AFS)

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION

1	Short cord (See Short Cord Removal Note .)
2	Front turn light bulb (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION .)
3	Parking light/Front side marker light bulb (See PARKING LIGHT BULB REMOVAL/INSTALLATION .) (See FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .)
4	Front combination light

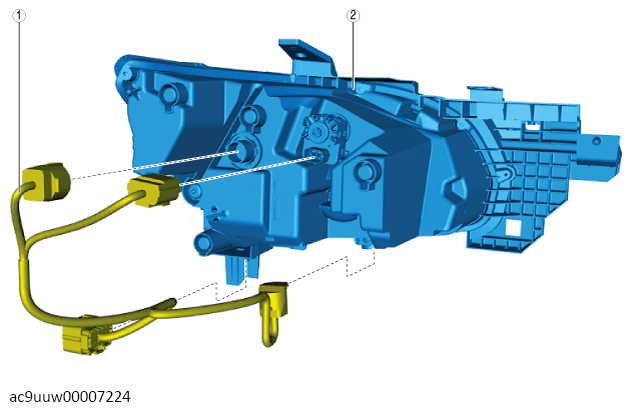

With adaptive front lighting system (AFS)

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION

1	Short cord (See Short Cord Removal Note .)
2	Front combination light
