Dashboard Component

Remove the passenger-side air bag module. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)

Disassemble in the order indicated in the table.

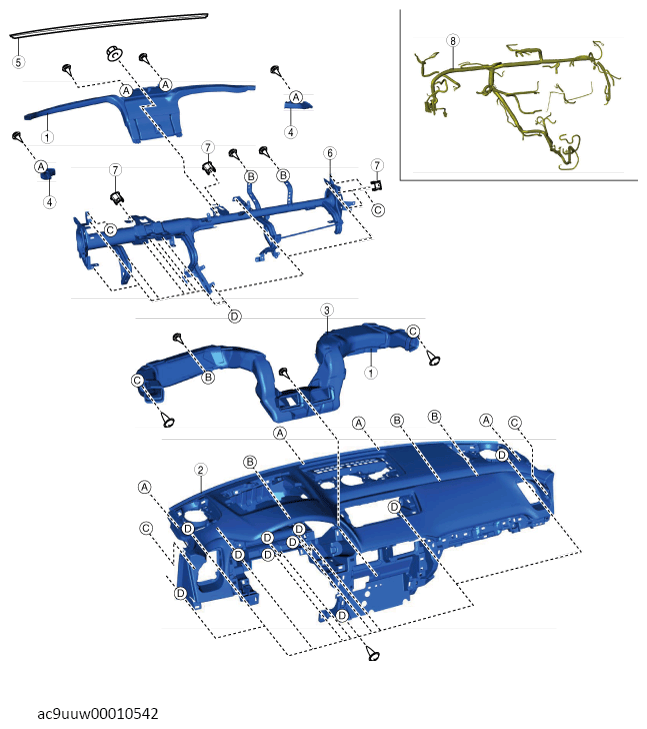

G13701881

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION

1	Center defroster
2	Dashboard pad
3	Duct
4	Side defroster
5	Seal tape
6	Dashboard member
7	Member junction
8	Wiring harness

When replacing the dashboard, remove the following parts and install them to the new dashboard.
1. Side speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
2. Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
3. Front side speaker (See FRONT SIDE SPEAKER REMOVAL/INSTALLATION .)
4. Front center speaker (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .)
5. Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
6. Keyless antenna (See KEYLESS ANTENNA REMOVAL/INSTALLATION .)
7. Parking assist unit (See PARKING ASSIST UNIT REMOVAL/INSTALLATION .)
8. Global positioning system (GPS) antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
9. GPS antenna feeder (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION .)
10. Side ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
11. Meter hood No. 2 (with active driving display) (See METER HOOD REMOVAL/INSTALLATION .)
12. Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .)
Assemble in the reverse order of disassembly.
