Front Console Disassembly/Assembly

  1. Remove the commander switch. (See COMMANDER SWITCH REMOVAL/INSTALLATION .)
  2. Disassemble in the order indicated in the table.

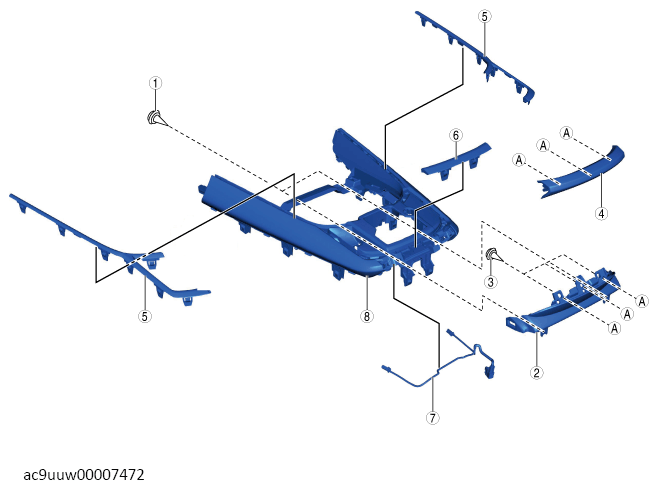

    G13701930Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Screw A
    2 Front console cover
    3 Screw B
    4 Protector
    5 Side plate
    6 Center plate
    7 Short code (with illumination)
    8 Front console panel
  3. Assemble in the reverse order of disassembly.
