Front Door Trim Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

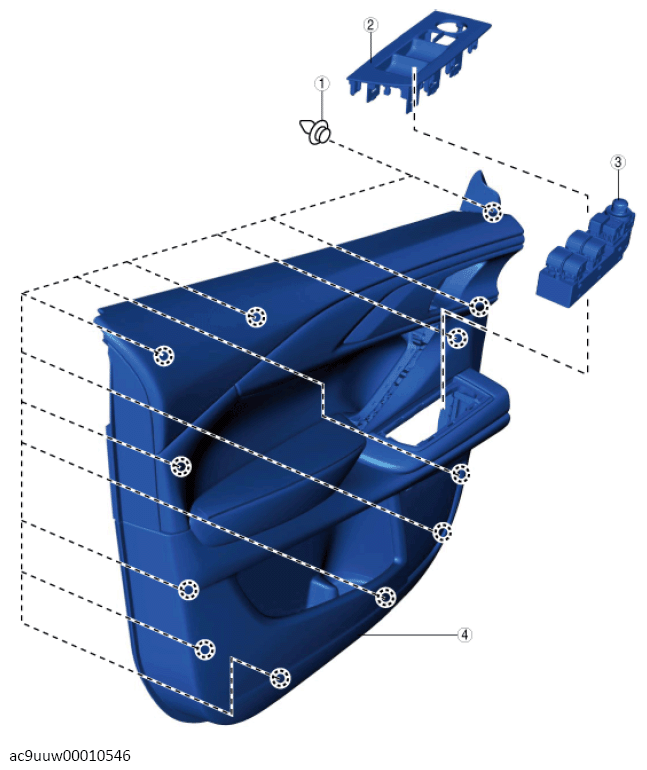

    Driver-side

    G13701937Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Fastener
    2 Switch panel
    3 Power window main switch
    (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    4 Front door trim

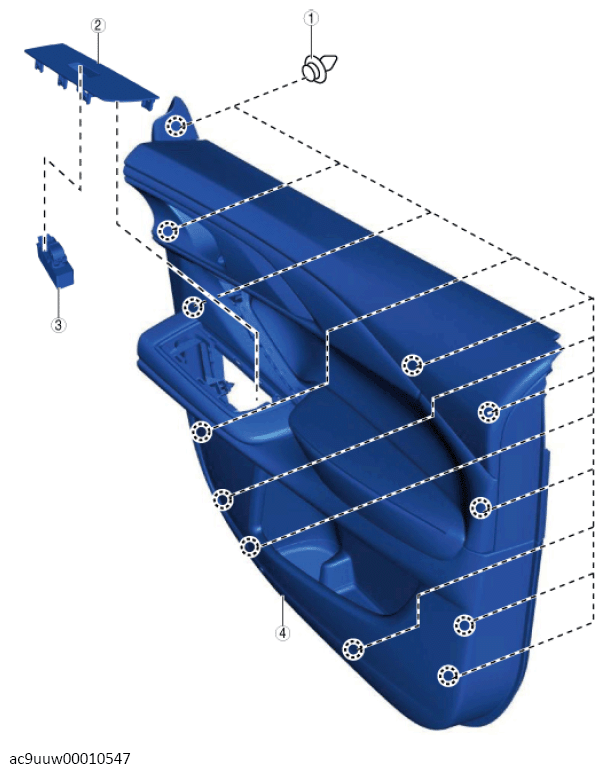

    Passenger-side

    G13701938Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Fastener
    2 Switch panel
    3 Lock switch
    4 Power window subswitch
    (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    5 Front door trim
  2. Assemble in the reverse order of disassembly.
