Liftgate Side Trim Removal/Installation: Installation

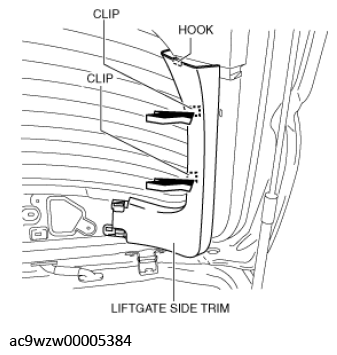

  1. Align the fastener and the hook of the liftgate side trim, press the liftgate side trim in the direction of the arrow shown in the figure, and install the clips to the liftgate.
    G12266460Courtesy of MAZDA MOTORS CORP.

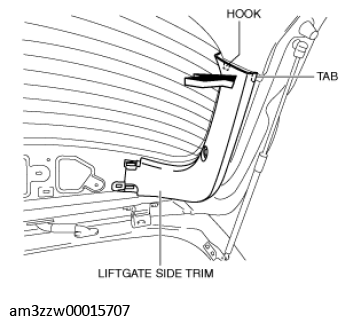

  2. Press the liftgate side trim in the direction of the arrow shown in the figure and install the hook and the tab to the liftgate lower trim.
    G11434561Courtesy of MAZDA MOTORS CORP.

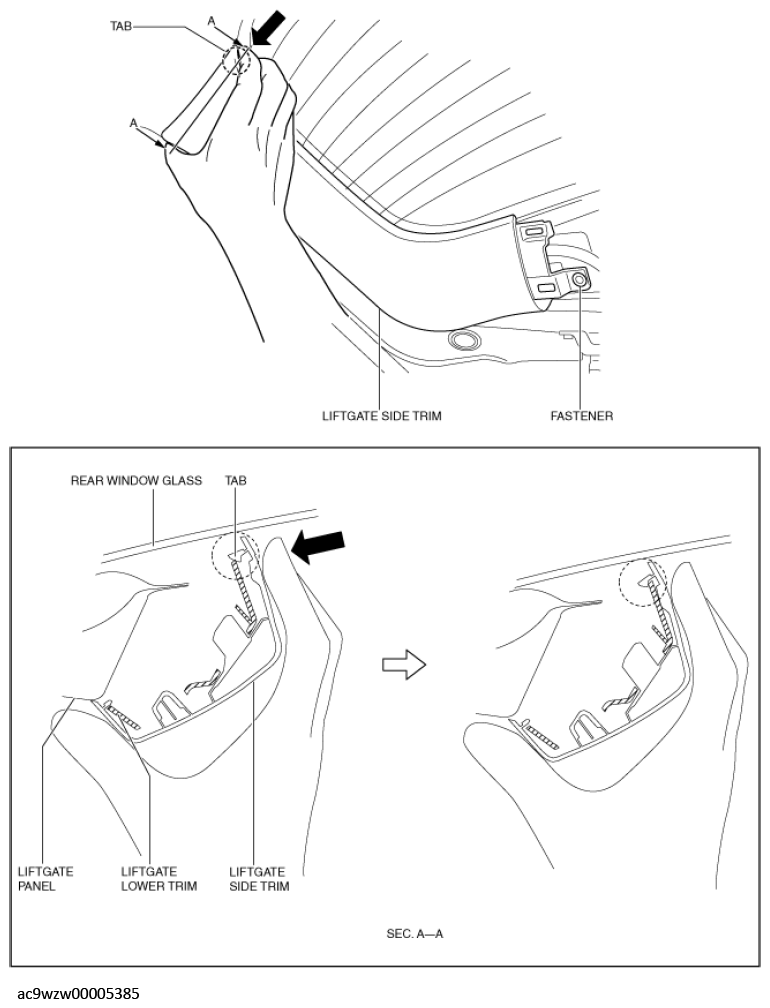

  3. Press the liftgate side trim in the direction of the arrow shown in the figure and install the tab to the liftgate lower trim.
    G12266462Courtesy of MAZDA MOTORS CORP.
  4. Install the fastener.
  5. Install the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
