Rear Console-Up Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

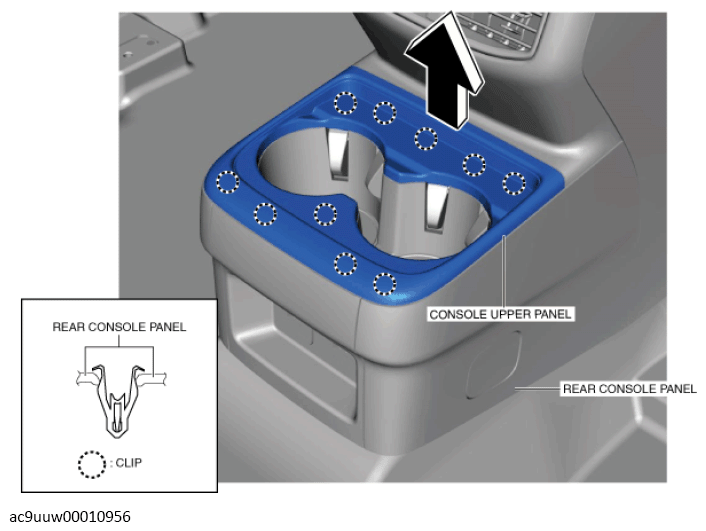

  2. Using a remover tool, remove the console upper panel in the direction of arrow shown in the figure while detaching the clips from the rear console panel.
    G13450642Courtesy of MAZDA MOTORS CORP.

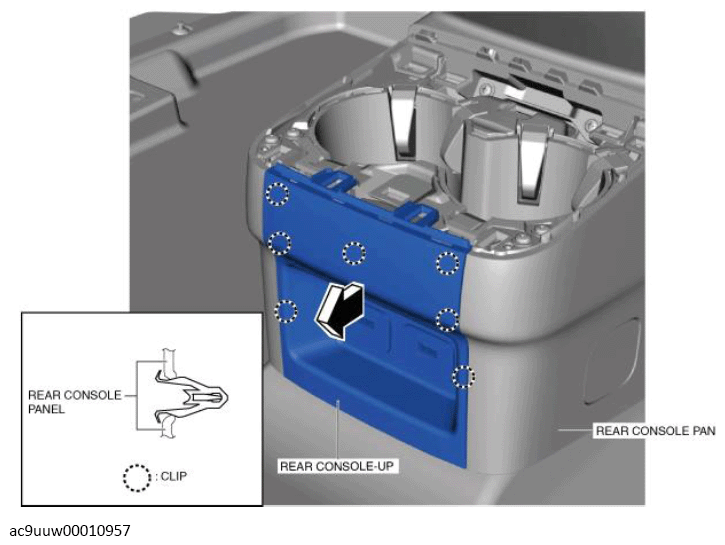

  3. Move the rear console-up in the direction of the arrow shown in the figure and remove it while detaching the clips from the rear console panel.
    G13450643Courtesy of MAZDA MOTORS CORP.

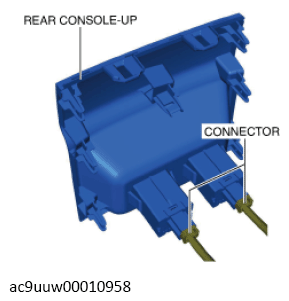

  4. Disconnect the connectors.
    G13450644Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear console-up.
  6. Install in the reverse order of removal.
