SUNVISOR Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

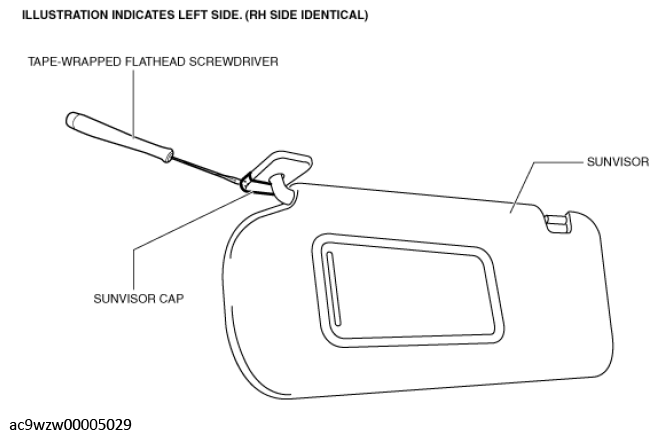

  2. Insert a tape-wrapped flat head screwdriver into the position shown in the figure. (with sunvisor cap)
    G12266514Courtesy of MAZDA MOTORS CORP.

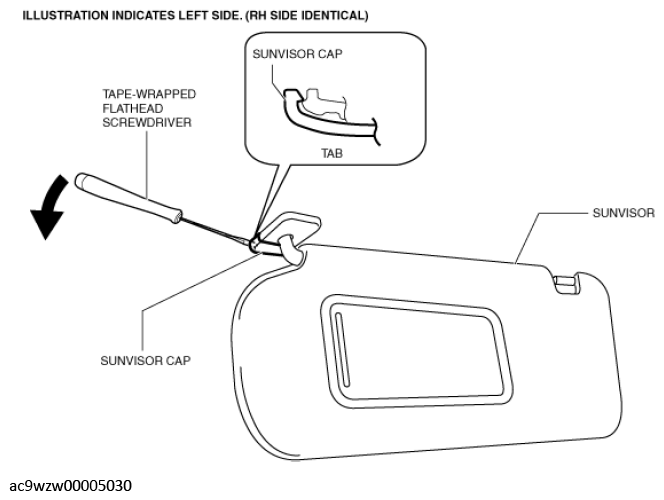

  3. Move the tape-wrapped flat head screwdriver in the direction of the arrow shown in the figure, detach the tab, and remove the sunvisor cap. (with sunvisor cap)
    G12266515Courtesy of MAZDA MOTORS CORP.

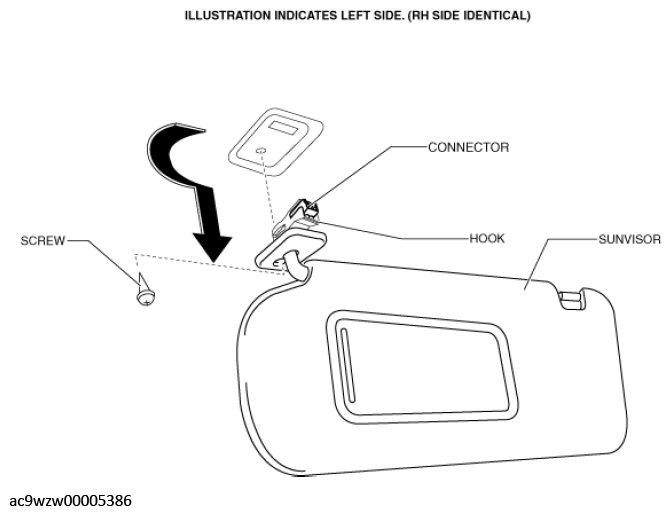

  4. Remove the screw.
    G12266516Courtesy of MAZDA MOTORS CORP.
  5. Remove the sunvisor in the direction of the arrow shown in the figure while detaching the hook.
  6. Disconnect the vanity mirror illumination connector. (with vanity mirror illumination)

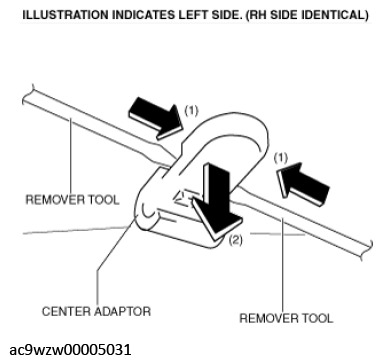

  7. Press the center adaptor tabs in the direction of arrows (1) shown in the figure using two remover tools.
    G12266517Courtesy of MAZDA MOTORS CORP.
  8. Remove the center adaptor in the direction of arrow (2) shown in the figure.
  9. Install in the reverse order of removal.
