Walk-In Actuator Inspection

1. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Disconnect the walk-in actuator connector.

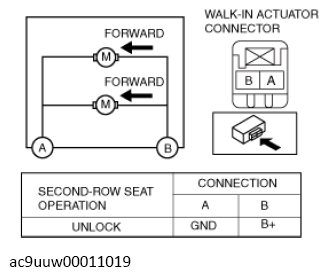

3. Apply battery positive voltage and connect the ground to the walk-in actuator terminals as indicated in the table below and verify the operation condition.

LH

Courtesy of MAZDA MOTORS CORP.

RH

Courtesy of MAZDA MOTORS CORP.

• If not as specified, replace the second-row seat. (See SECOND-ROW SEAT REMOVAL/INSTALLATION .)
