Glass Panel Removal/Installation: Notes

Fully open the sunshade.
Fully close the glass panel.
Remove screws.

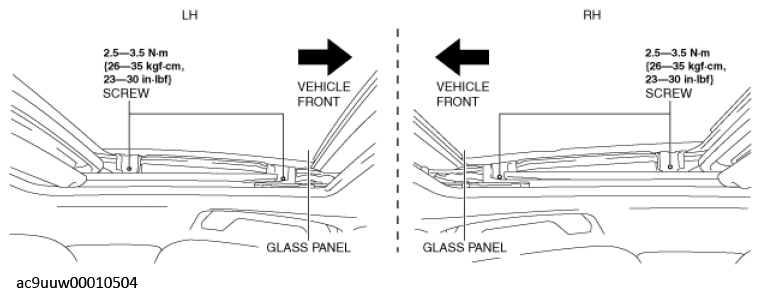

Fig 1: Glass Panel Screws With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the glass panel in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Peel the weatherstrip off the glass panel. (See Weatherstrip Installation Note .)
Install in the reverse order of removal.
