Sunshade Disassembly Note

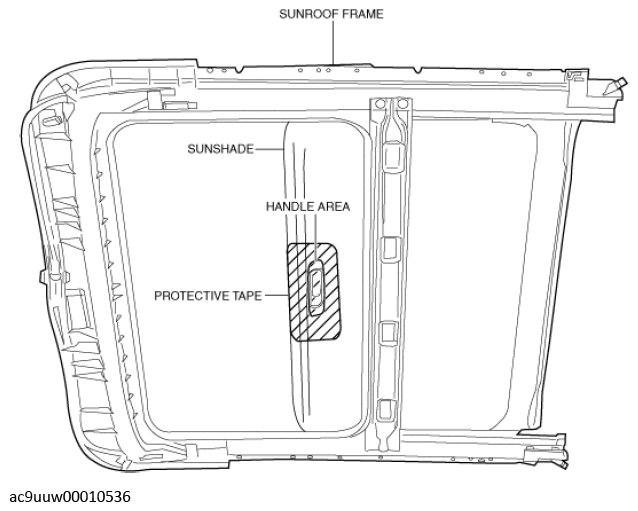

To prevent scratches or damage, affix protective tape to the position shown in the figure of the sunshade.

Courtesy of MAZDA MOTORS CORP.

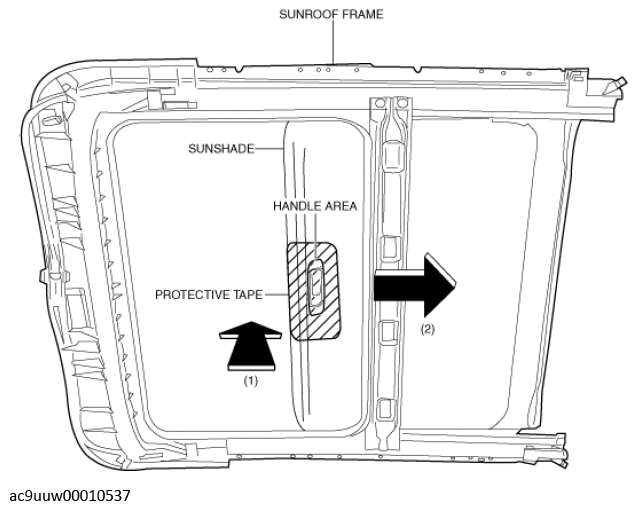

Pull the sunshade in the direction of the arrow in the order of (1), (2) and remove it.
CAUTION:
- The sunshade may contact the sunroof frame and the handle area may be damaged. Remove the sunshade by sliding it in the direction of arrow (2) shown in the figure while lifting it in the direction of arrow (1).

Courtesy of MAZDA MOTORS CORP.
