Connector Disconnection Note

  1. Remove the fasteners.

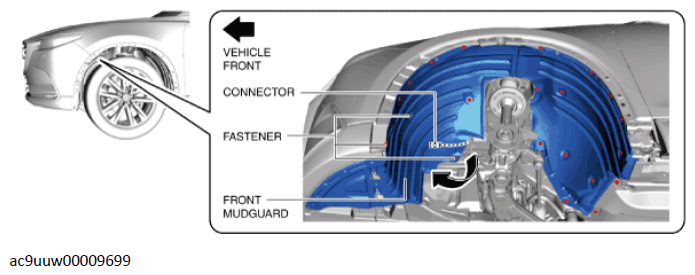

    G11433121Courtesy of MAZDA MOTORS CORP.
  2. Peel back the front mudguard and disconnect the connector.
