Rear ABS Wheel-speed Sensor Removal Note

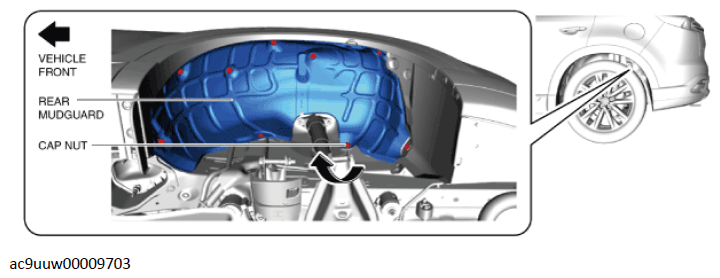

  1. Remove the cap nut.
    G11433133Courtesy of MAZDA MOTORS CORP.
  2. Peel back the rear mudguard and remove the rear ABS wheel-speed sensor.
