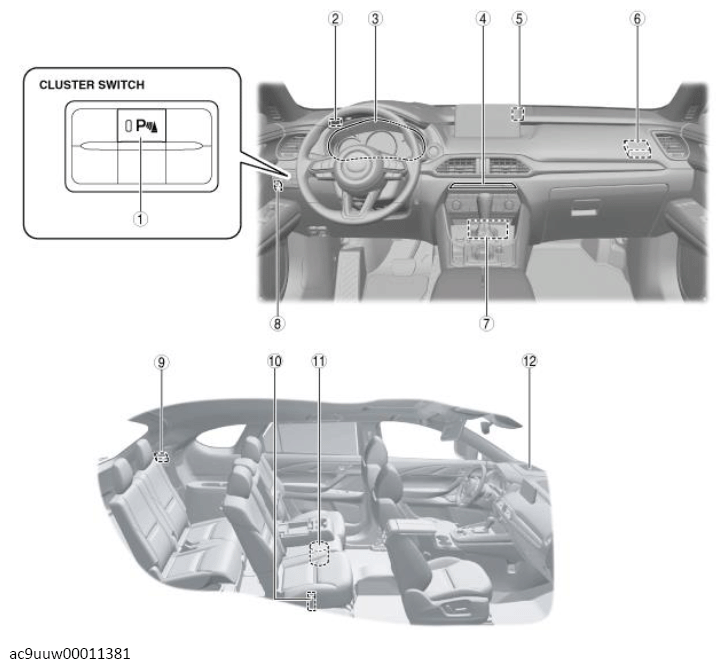

| 1 |
Parking sensor switch (With parking sensor system)
(See PARKING SENSOR SWITCH REMOVAL/INSTALLATION .)
(See PARKING SENSOR SWITCH INSPECTION .) |
| 2 |
TEL antenna No. 1 (With telematics communication system)
(See TEL ANTENNA REMOVAL/INSTALLATION .)
(See TEL ANTENNA INSPECTION .) |
| 3 |
Instrument cluster
(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
(See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .)
(See INSTRUMENT CLUSTER INSPECTION .)
(See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .)
(See INSTRUMENT CLUSTER OPERATION RECORD .)
(See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE .)
(See INSTRUMENT CLUSTER DATA RESET PROCEDURE .) |
| 4 |
Indicator unit
(See INDICATOR UNIT REMOVAL/INSTALLATION .)
(See INDICATOR UNIT INSPECTION .) |
| 5 |
TEL antenna No. 2 (With telematics communication system)
(See TEL ANTENNA REMOVAL/INSTALLATION .)
(See TEL ANTENNA INSPECTION .) |
| 6 |
Parking assist unit (With parking sensor system)
(See PARKING ASSIST UNIT REMOVAL/INSTALLATION .)
(See PARKING ASSIST UNIT INSPECTION .) |
| 7 |
Telematics communication unit (With telematics communication system)
(See TELEMATICS COMMUNICATION UNIT REMOVAL/INSTALLATION .)
(See TELEMATICS COMMUNICATION UNIT BRACKET REMOVAL/INSTALLATION .)
(See ACTIVATING REMOTE CONTROL BY SMART PHONE .)
(See TELEMATICS COMMUNICATION UNIT INITIAL SETTING .)
(See TELEMATICS COMMUNICATION UNIT INSPECTION .) |
| 8 |
Front parking sensor buzzer (With front ultrasonic sensor)
(See FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION .)
(See FRONT PARKING SENSOR BUZZER INSPECTION .) |
| 9 |
Rear seat belt reminder unit
(See REAR SEAT BELT REMINDER UNIT REMOVAL/INSTALLATION .)
(See REAR SEAT BELT REMINDER UNIT INSPECTION .) |
| 10 |
Fuel gauge sender unit (sub) (AWD)
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [AWD] .)
(See FUEL GAUGE SENDER UNIT INSPECTION [AWD] .) |
| 11 |
Fuel gauge sender unit (2WD)
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD] .)
(See FUEL GAUGE SENDER UNIT INSPECTION [2WD] .) |
Fuel gauge sender unit (main) (AWD)
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [AWD] .)
(See FUEL GAUGE SENDER UNIT INSPECTION [AWD] .) |
| 12 |
Active driving display (With active driving display)
(See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .)
(See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY .)
(See ACTIVE DRIVING DISPLAY INSPECTION .) |
