No. 1 Engine Mount (2WD): Notes

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

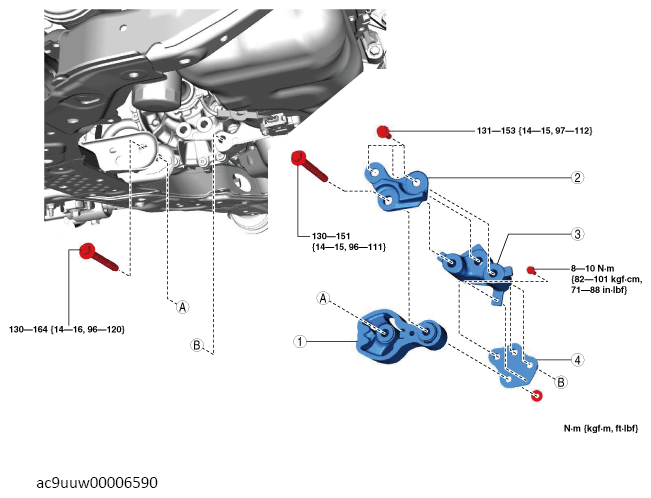

Fig 1: No. 1 Engine Mount Components With Torque Specification (2WD)

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	No. 1 engine mount rubber) See NO. 1 ENGINE MOUNT RUBBER REMOVAL NOTE (2WD) .) (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (2WD) .)
2	Bracket plate (No. 1) (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (2WD) .)
3	No. 1 engine mount bracket (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (2WD) .)
4	Bracket plate (No. 2) (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (2WD) .)
