No. 1 Engine Mount (AWD): Notes

NOTE:
  • When removing the No. 1 engine mount rubber for AWD vehicles, loosen the front crossmember installation bolts and perform the procedure with the front crossmember component lowered to 15-20 mm {0.60-0.78 in}.
  • When removing the No. 1 engine mount bracket for AWD vehicles, perform the procedure with the front crossmember component and transfer completely removed from the vehicle.
  1. Remove the front under cover No. 1 and front under cover No. 2. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .) (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  2. Remove the front splash shield. (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.
  5. Inspect the front wheel alignment. (See FRONT WHEEL ALIGNMENT .)

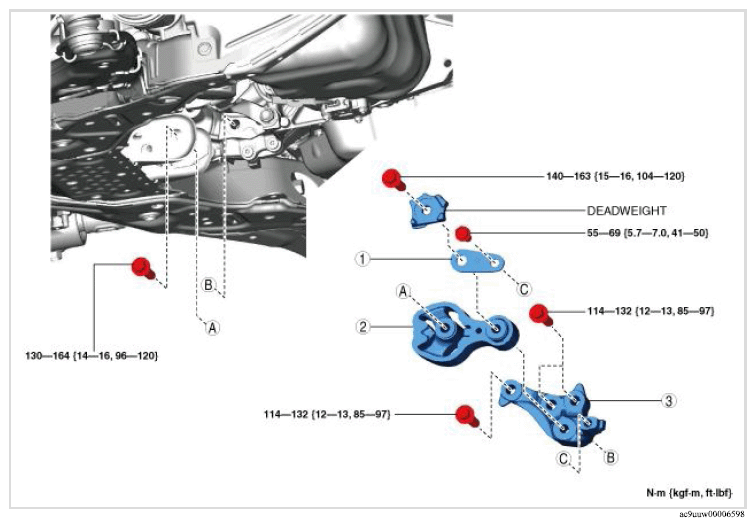

    Fig 1: No. 1 Engine Mount Components With Torque Specification (AWD)
    G13444502Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Bracket plate
    (See NO. 1 ENGINE MOUNT RUBBER, BRACKET PLATE INSTALLATION NOTE (AWD) .)
    2 No. 1 engine mount rubber)
    See NO. 1 ENGINE MOUNT RUBBER REMOVAL NOTE (AWD) .)
    (See NO. 1 ENGINE MOUNT RUBBER, BRACKET PLATE INSTALLATION NOTE (AWD) .)
    3 No. 1 engine mount bracket)
    See NO. 1 ENGINE MOUNT BRACKET REMOVAL NOTE (AWD) .)
    (See NO. 1 ENGINE MOUNT BRACKET INSTALLATION NOTE (AWD) .)
