Front Oil Seal Replacement: Notes

Special Service Tool (SST)

  1. Mazda SST number
  2. Global SST number
  1. 49 UN20

    5072

  2. 205-072

    Holder
G13698192Courtesy of MAZDA MOTORS CORP.
  1. 49 B011 105
  2. -

    Adapter
G13698193Courtesy of MAZDA MOTORS CORP.
  1. 49 H010 401
  2. -

    Oil seal installer
G13698194Courtesy of MAZDA MOTORS CORP.
WARNING:
  • A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.
  1. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  2. Remove the front splash shield (RH). (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
  3. Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

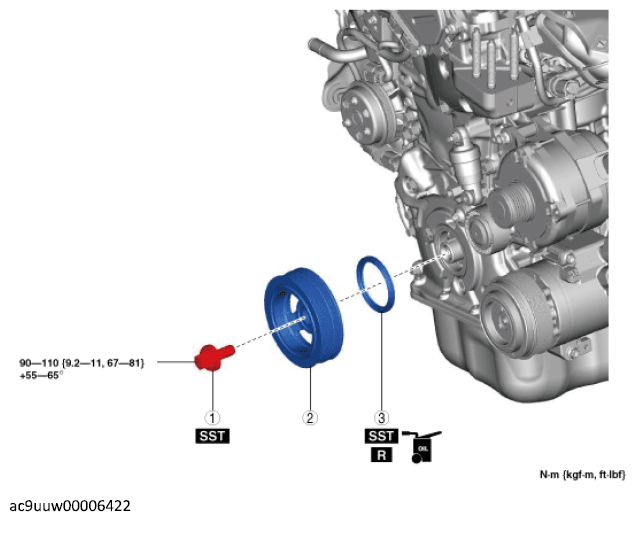

    Fig 1: Front Oil Seal Components With Torque Specification
    G12228073Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Crankshaft pulley lock bolt)
    See CRANKSHAFT PULLEY LOCK BOLT REMOVAL NOTE .)
    (See CRANKSHAFT PULLEY LOCK BOLT INSTALLATION NOTE .)
    2 Crankshaft pulley
    3 Front oil seal)
    See FRONT OIL SEAL REMOVAL NOTE .)
    (See FRONT OIL SEAL INSTALLATION NOTE .)
