Check Valve Installation Note

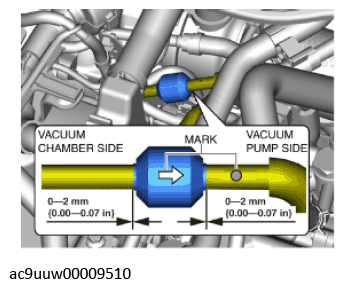

  1. Install the check valve as shown in the figure.
    G11436426Courtesy of MAZDA MOTORS CORP.
