Compression pressure

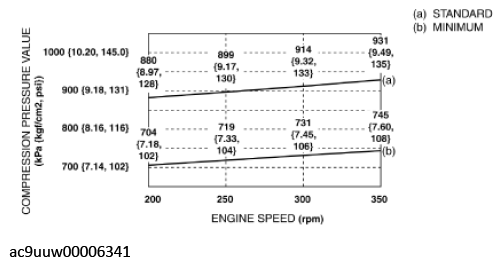

G11436501Courtesy of MAZDA MOTORS CORP.

Standard: Refer to the graph.

Minimum: Refer to the graph.

Maximum difference between cylinders: 153 kPa {1.56 kgf/cm2 , 22.2 psi} [250 rpm]
