On-Board Diagnostic - Engine Control System (2 Of 6)
›
DTC P0116-00: ECT Sensor Circuit Range/Performance Problem
›
Function Explanation (DTC Detection Outline)
Function Explanation (DTC Detection Outline)

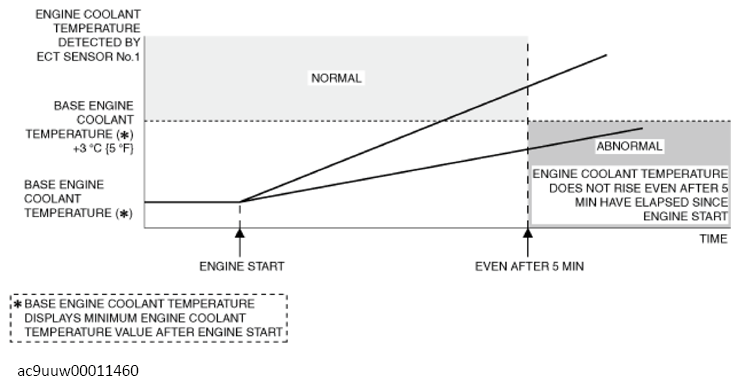

If the engine coolant temperature detected by the ECT sensor is not rising 3°C {5°F} or more during a 5 min period after the engine is started, the PCM determines an ECT sensor malfunction and stores a DTC.
Courtesy of MAZDA MOTORS CORP.
