Glass Panel Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Fully open the sunshade.
Fully close the glass panel.

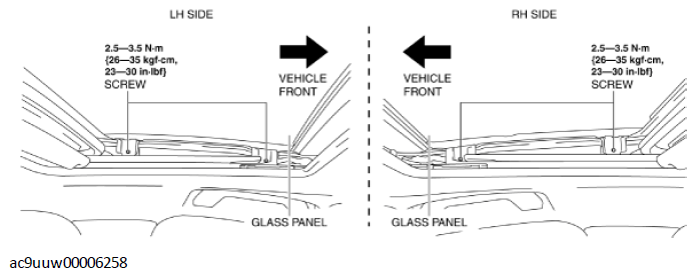

Remove screws.

Fig 1: Removing Glass Panel
Courtesy of MAZDA MOTORS CORP.
Remove the glass panel in the direction of arrow shown in the figure.

Fig 2: Removing Glass Panel
Courtesy of MAZDA MOTORS CORP.
Peel the weatherstrip off the glass panel. (See WEATHERSTRIP INSTALLATION NOTE .)
Install in the reverse order of removal.
