Sunroof Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

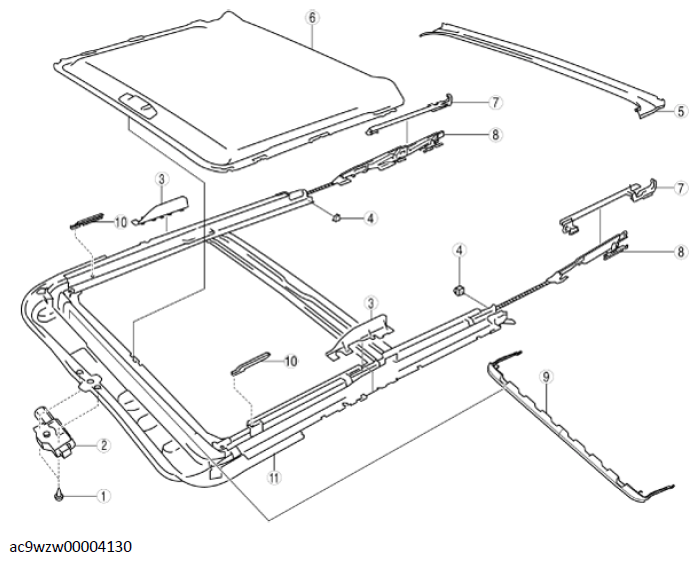

Fig 1: Sunroof Unit Disassembly Sequence

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Screw
2	Sunroof motor
3	Screen
4	Rear stopper
5	Drip rail
6	Sunshade (See Sunshade Disassembly Note .)
7	Front guide (See Front Guide Disassembly Note .)
8	Decoration link
9	Deflector
10	Set plate
11	Sunroof frame

Assemble in the reverse order of disassembly.
