Vehicle Securing Position

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

When transporting the vehicle by flat bed tow truck or trailer, secure the vehicle to the trailer using the holes and center tiedown loop shown in the figure.

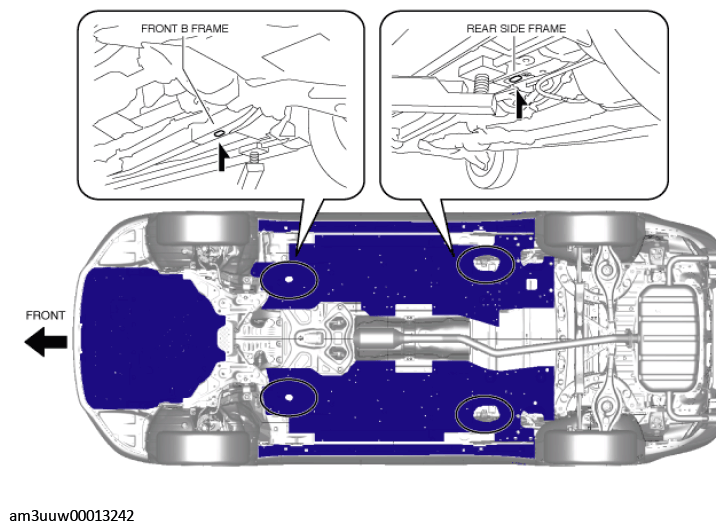

Fig 1: Vehicle Securing Position Location

G11550558

Courtesy of MAZDA MOTORS CORP.

CAUTION:

Do not use the tiedown hook on the end of the rear bumper for towing or transporting the vehicle. The tie down hook is used only for transporting the vehicle by ship. Using the tie down hook could cause damage to the bumper and the vehicle body.
