DTC B1207-86; Error Signal Received From SAS Control Module: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Error signal received from SAS control module |
| Detection condition |
- The rear body control module (RBCM) detected the following conditions for 3 s or more with the ignition switched ON (engine off or on).
- Error signal is received from SAS control module even though the collision detection unlock function presence signal received from the rear body control module (RBCM) determines that the function is present.
|
| Fail-safe |
Not applicable |
| Possible cause |
- SAS control module connector or terminal malfunction
- Rear body control module (RBCM) connector or terminal malfunction

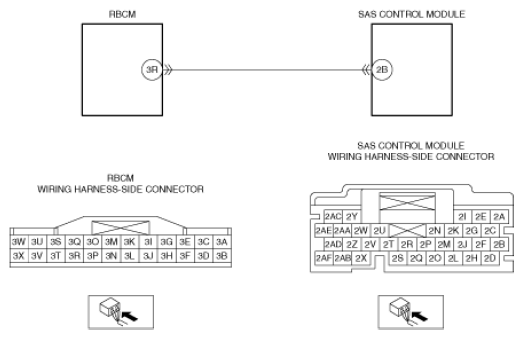

- Short to ground in wiring harness between the following terminals:
- SAS control module terminal 2B-Rear body control module (RBCM) terminal 3R
- Short to power supply in wiring harness between the following terminals:
- SAS control module terminal 2B-Rear body control module (RBCM) terminal 3R
- Open circuit in wiring harness between the following terminals:
- SAS control module terminal 2B-Rear body control module (RBCM) terminal 3R
- SAS control module malfunction
- Rear body control module (RBCM) malfunction
|
|
|
