Instrument Cluster Disassembly/Assembly

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the instrument cluster is hit forcefully during disassembly such as by being dropped, it could get damaged and the system may not operate normally. When disassembling the instrument cluster, perform the procedure on a workbench on clean clothes being careful not to drop it.

Disassemble in the order indicated in the table.

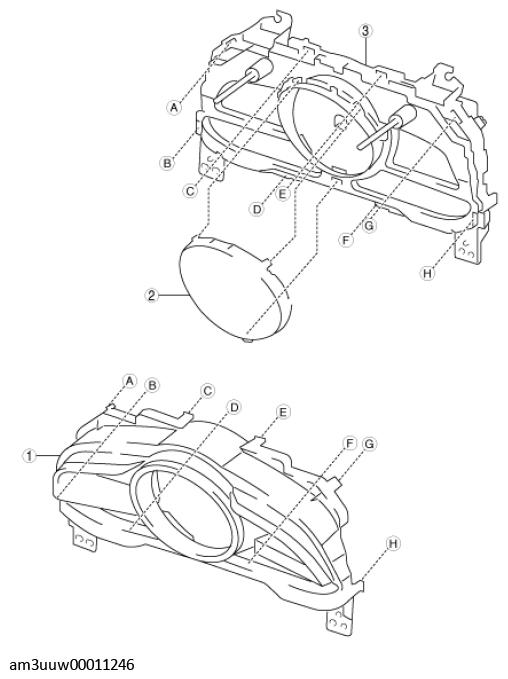

Fig 1: Disassembling/Assembling Instrument Cluster

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Cover
2	Panel
3	Instrument cluster

Assemble in the reverse order of disassembly.
