Side Panel Removal Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

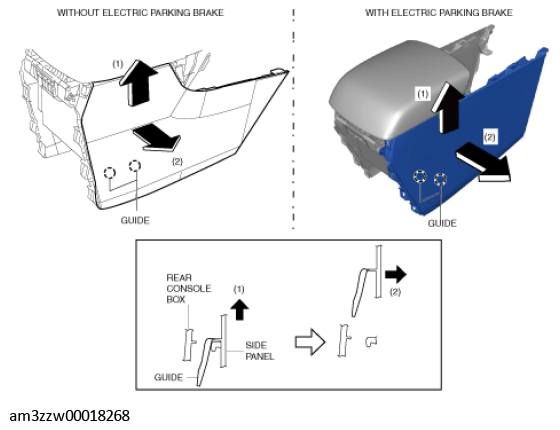

Move the side panel in the order of arrows (1) and (2) shown in the figure and remove the guides from the rear console box.

Fig 1: Removing Guides From Rear Console Box

Courtesy of MAZDA MOTORS CORP.
