Center Display Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
  4. Remove the bolt.
    Fig 1: Locating Bolt On Center Display Component
    G11448759Courtesy of MAZDA MOTORS CORP.

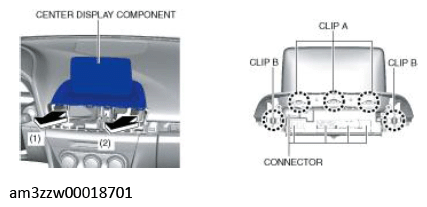

  5. Pull the center display component in the order of arrows (1) and (2) shown in the figure, and detach the clips A and B from the dashboard.
    Fig 2: Pulling Center Display Component
    G11448760Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the connectors.
  7. Remove the center display component.
  8. Remove the connectivity master unit (CMU). (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
  9. Install in the reverse order of removal.
