Cooling Fan Motor Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.
  • Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes.
  • When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  4. Remove the air cleaner, air hose and fresh air duct component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  5. Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION .)
  6. Remove in the order indicated in the table.
  7. Install in the reverse order of removal.
  8. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  9. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)

    World manufacturer identification "JM1"

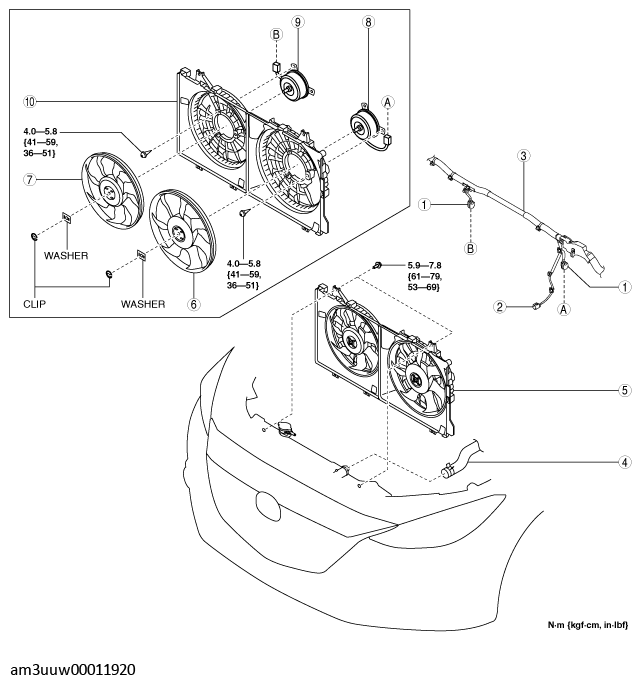

Fig 1: Exploded View Of Cooling Fan Motor Components - JM1
G11450667Courtesy of MAZDA MOTORS CORP.

World manufacturer identification "3MZ"

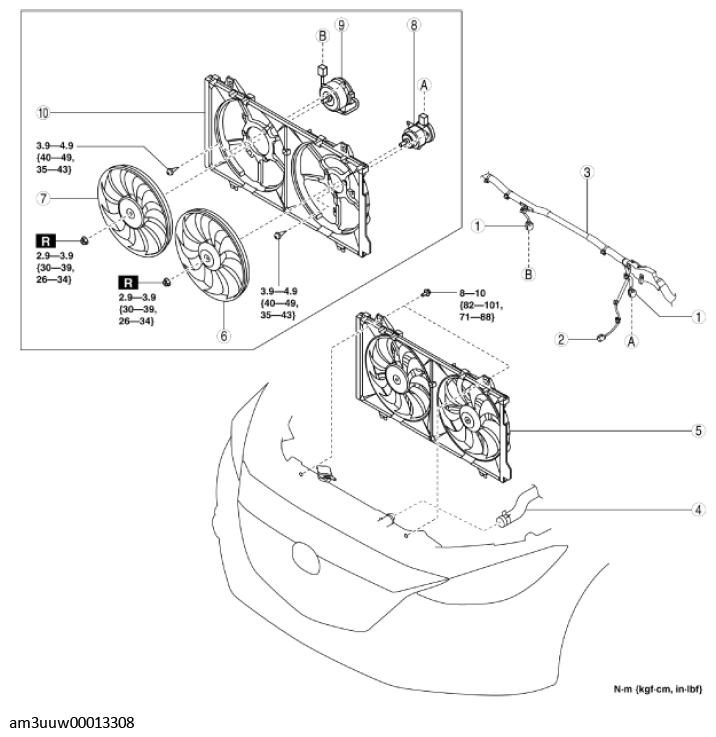

Fig 2: Exploded View Of Cooling Fan Motor Components - 3MZ
G11450668Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Cooling fan motor connector
2 ECT sensor No. 2 connector (if equipped)
3 Wiring harness
4 Upper radiator hose
(See Upper Radiator Hose Removal Note .)
5 Cooling fan component
(See Cooling Fan Component Removal Note .)
(See Cooling Fan Component Installation Note .)
6 Cooling fan No. 1
(See Cooling Fan Removal Note [World manufacturer identification "JM1"] .)
(See Cooling Fan Installation Note [World manufacturer identification "JM1"] .)
7 Cooling fan No. 2
(See Cooling Fan Removal Note [World manufacturer identification "JM1"] .)
(See Cooling Fan Installation Note [World manufacturer identification "JM1"] .)
8 Cooling fan motor No. 1
9 Cooling fan motor No. 2
10 Radiator cowling
