Floor Covering Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When replacing the rear wiring harness, position the wiring harness wrapped in orange tape on the left side and the wiring harness wrapped in green tape on the right side to prevent incorrect assembly of the rear wiring harness.

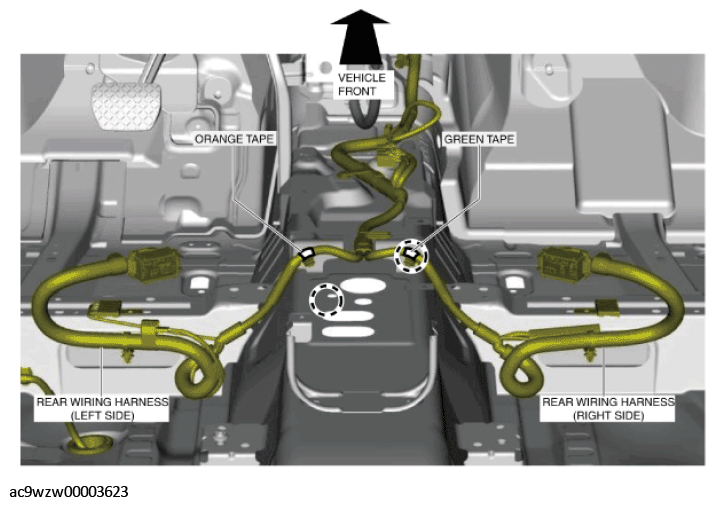

Fig 1: Wrapping Rear Wiring Harness With Orange And Green Tape
G11434915Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front seat (See FRONT SEAT REMOVAL/INSTALLATION .)
    2. Second-row seat (See SECOND-ROW SEAT REMOVAL/INSTALLATION .)
    3. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    4. Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    5. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    7. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    8. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    9. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    10. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    11. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    12. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    13. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    14. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    15. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    16. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    17. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    18. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    19. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    20. Audio amplifier (with Bose ®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION .)
    21. Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
    22. Rear A/C unit (See REAR A/C UNIT REMOVAL/INSTALLATION .)
    23. Selector lever component (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    24. Selector lever bracket (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  3. Remove the fasteners.

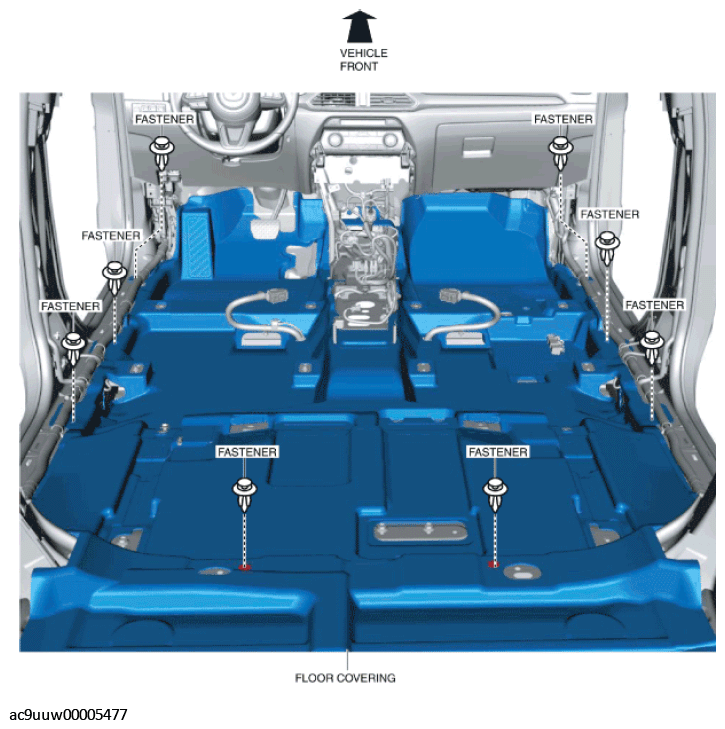

    Fig 2: Removing Floor Covering Fasteners
    G11434916Courtesy of MAZDA MOTORS CORP.
  4. Take the floor covering out from the door opening.
  5. Install in the reverse order of removal. (See FLOOR COVERING INSTALLATION NOTE .)
