Front Console Disassembly/Assembly

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Remove the commander switch. (See COMMANDER SWITCH REMOVAL/INSTALLATION .)

Disassemble in the order indicated in the table.

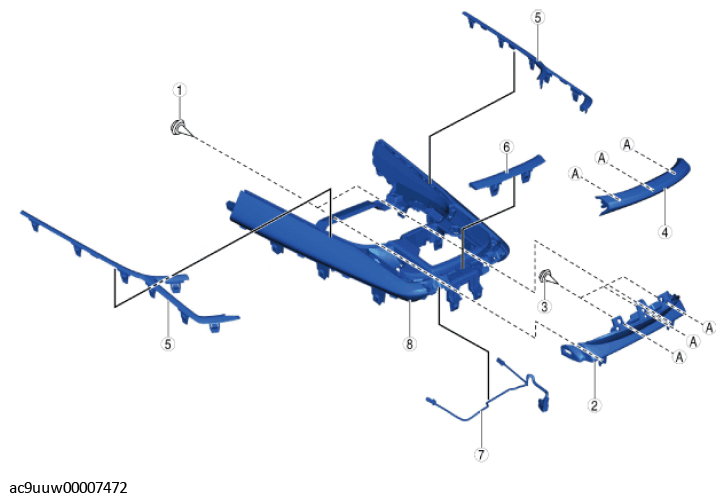

Fig 1: Front Console Related Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Screw A
2	Front console cover
3	Screw B
4	Protector
5	Side plate
6	Center plate
7	Short code
8	Front console panel

Assemble in the reverse order of disassembly.
