Front Scuff Plate Removal/Installation: Removal

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Hold area A shown in the figure, open the front scuff plate in the direction of arrow (1), move it in the direction of arrow (2), and detach tab A of the front scuff plate from the front side trim.

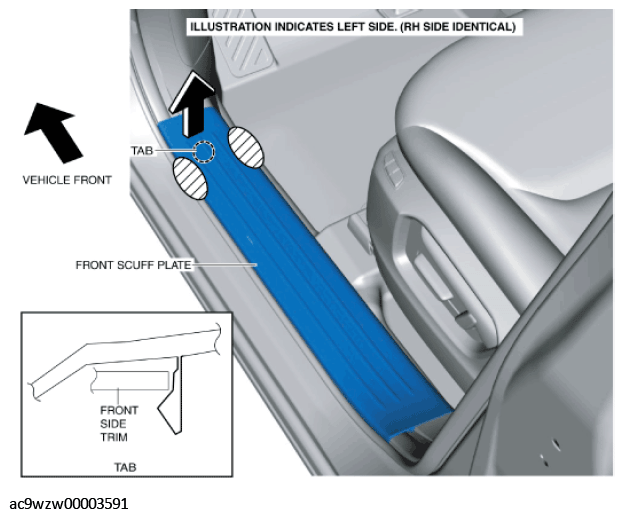

Fig 1: Opening Front Scuff Plate
Courtesy of MAZDA MOTORS CORP.
Hold the shaded area shown in the figure, move the front scuff plate in the direction of arrow, and detach tab of the front scuff plate from the front side trim.

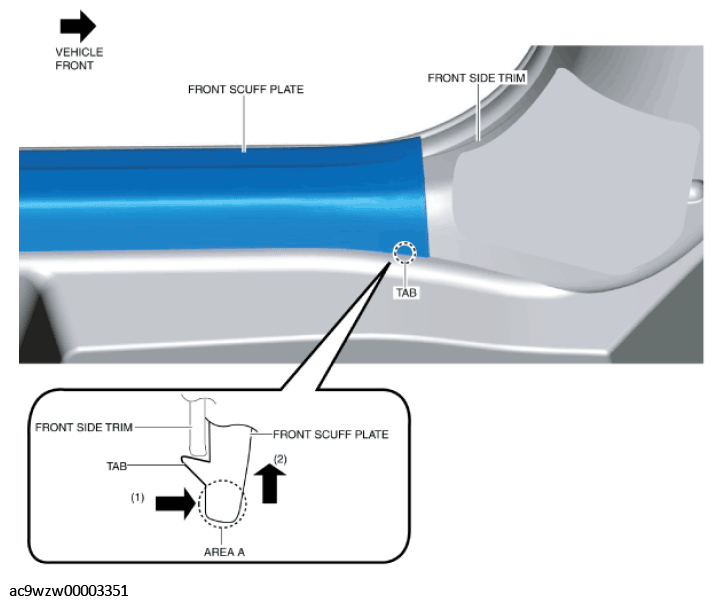

Fig 2: Detaching Tab Of Front Scuff Plate From Front Side Trim
Courtesy of MAZDA MOTORS CORP.
Hold the shaded area shown in the figure, move the front scuff plate in the direct ion of the arrow in the order of (1), (2) and remove it while detaching clips from the inner panel, and pull out the pins.

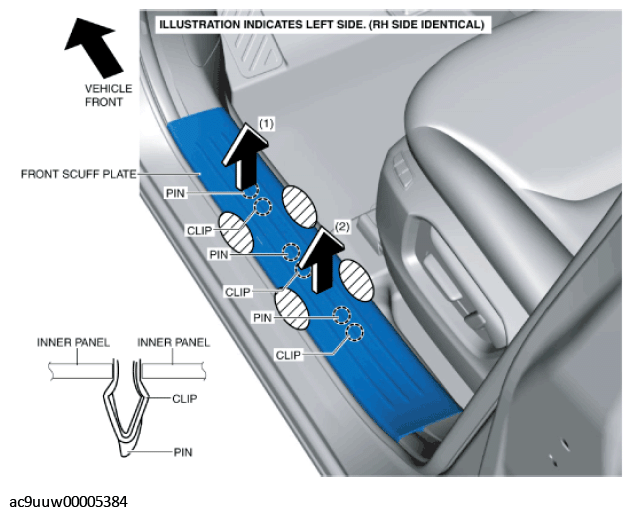

Fig 3: Moving Front Scuff Plate
Courtesy of MAZDA MOTORS CORP.
Hold part A shown in the figure, open the front scuff plate in the direction of arrow (1), move it in the direction of arrow (2), and detach tab A of the front scuff plate from the B-pillar lower trim.

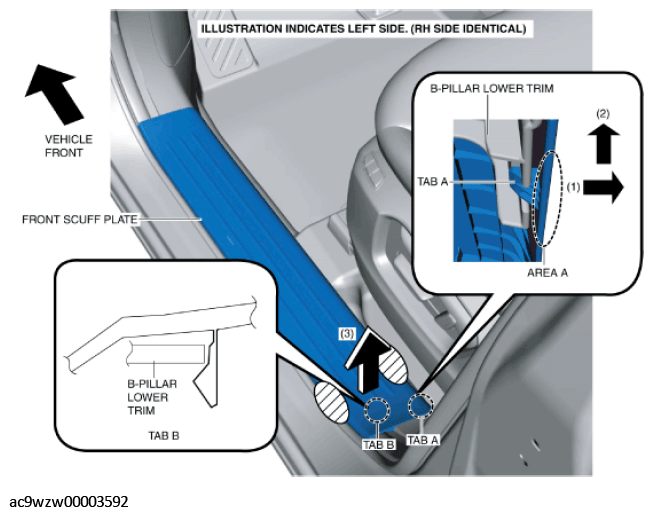

Fig 4: Detaching Tab A Of Front Scuff Plate From B-Pillar Lower Trim
Courtesy of MAZDA MOTORS CORP.
Hold the shaded area shown in the figure, move the front scuff plate in the direction of arrow (3), and detach tab B of the front scuff plate from the B-pillar lower trim.
