Rear Console Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

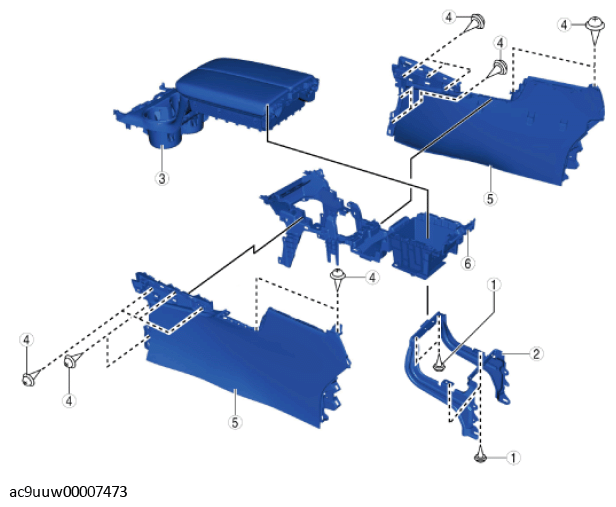

Fig 1: Rear Console Related Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Screw A
2	Rear console bracket
3	Rear console component
4	Screw C
5	Side panel
6	Rear console box

Assemble in the reverse order of disassembly.
