Rear Console Component

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

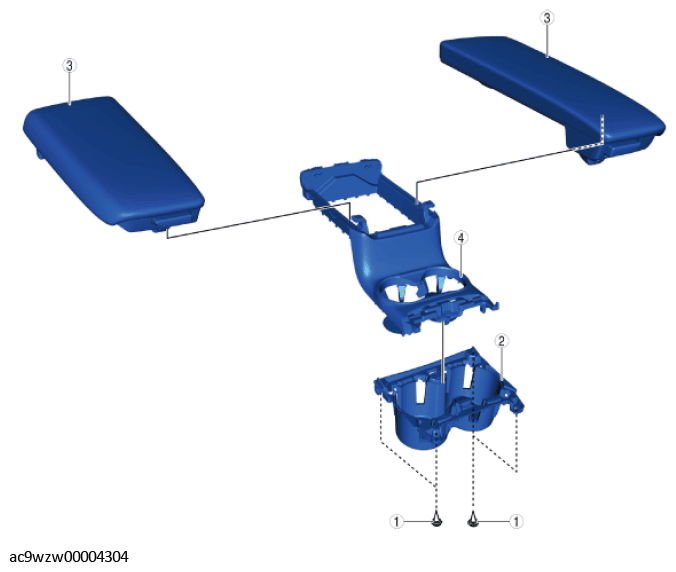

Fig 1: Cup Holder, Rear Console Lid, Rear Console And Screws

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Screw
2	Cup holder
3	Rear console lid
4	Rear console

Assemble in the reverse order of disassembly.
