Active Air Shutter Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If the active air shutter is disassembled and re-assembled, it may not operate normally. Do not disassemble the active air shutter because it is not designed to be disassembled.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION )
  2. Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
  4. Disconnect the connector.

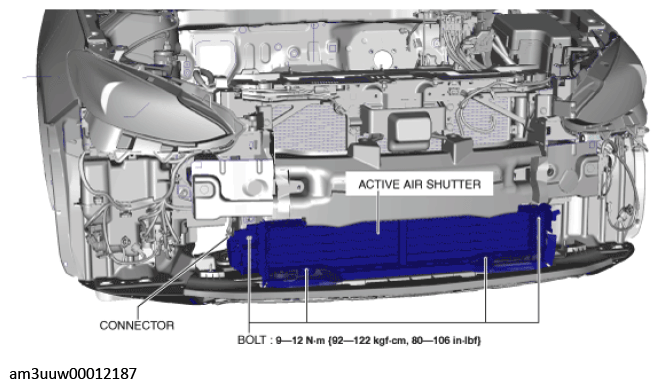

    Fig 1: Disconnecting Active Air Shutter Connector
    G11447506Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts.
  6. Insert the remover tool into the service hole shown in the figure.

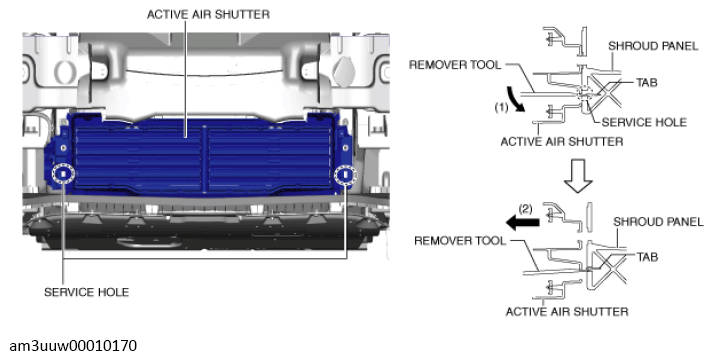

    Fig 2: Inserting Remover Tool Into Service Hole
    G11447507Courtesy of MAZDA MOTORS CORP.
  7. While moving the remover tool in the direction of arrow (1) shown in the figure, pull the active air shutter in the direction of arrow (2) to detach the tabs of the active air shutter from the shroud panel.
  8. Remove the active air shutter.
  9. Remove the active air shutter cover. (See ACTIVE AIR SHUTTER COVER REMOVAL/INSTALLATION .)
  10. Install in the reverse order of removal.
