Check Valve Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

U.S.A. And CANADA

Remove the breather pipe. (See FUEL TANK REMOVAL/INSTALLATION .)

Except U.S.A. And CANADA

NOTE:

A joint pipe with an exterior shape resembling the check valve may have been installed, however, in this case it is not the check valve. Therefore, when performing the servicing, verify the position of the check valve.

Remove in the order indicated in the table.

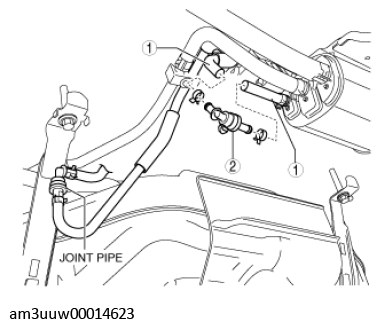

Fig 1: Removing Check Valve

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Evaporative hose (See Evaporative hose installation note .)
2	Check valve

Install in the reverse order of removal.
