Multiplex Slow Blow Fuse Removal/Installation
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the relay and fuse block upper cover. (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION .)
- Remove the front body control module (FBCM). (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION .)

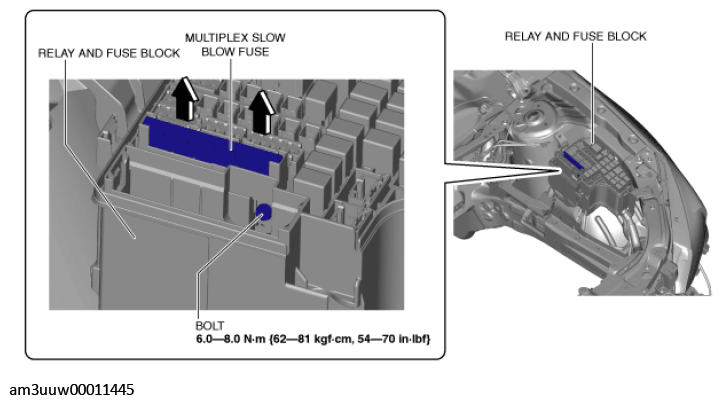

- Remove the bolt.
- Remove the multiplex slow blow fuse.
- Install in the reverse order of removal.
