Hazard Warning Switch Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Remove the passenger-side decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
  4. While pressing the hazard warning switch hooks in the direction of arrows (1) shown in the figure, press the hazard warning switch in the direction of arrow (2), and disconnect the hazard warning switch hooks from the decoration panel.
    Fig 1: Pressing Hazard Warning Switch Hooks
    G11435135Courtesy of MAZDA MOTORS CORP.
  5. Remove the hazard warning switch.

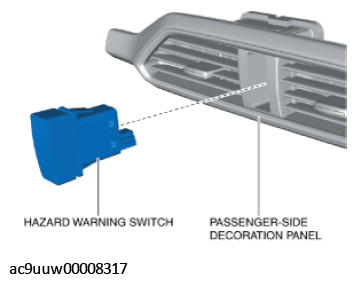

    Fig 2: Hazard Warning Switch And Passenger-Side Decoration Panel
    G11435136Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
