Rear Combination Light Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Fogging or condensation on the inside of the rear combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the rear combination lights rises after illuminating a rear turn light or a period of time has elapsed.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Insert the remover tool into the service hole at the position shown in the figure.

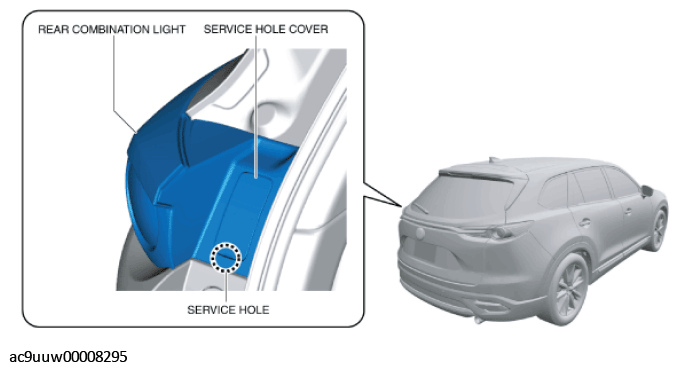

    Fig 1: Service Hole, Rear Combination Light And Service Hole Cover
    G11435188Courtesy of MAZDA MOTORS CORP.
  3. Move the remover tool in the direction of arrow (1) shown in the figure and pull out the service hole cover tab from the rear combination light.

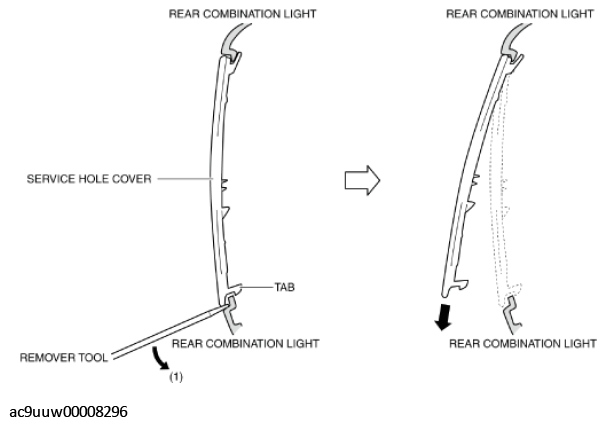

    Fig 2: Pulling Out Service Hole Cover Tab From Rear Combination Light
    G11435189Courtesy of MAZDA MOTORS CORP.
  4. Remove the service hole cover.
  5. Remove the screws in the order of (1) and (2).

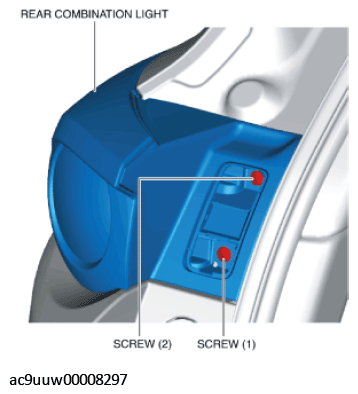

    Fig 3: Rear Combination Light And Screws
    G11435190Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When removing the rear combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the rear combination light from the body, apply protective tape to the body.
  6. To prevent scratches or damage, affix protective tape to the position shown in the figure.

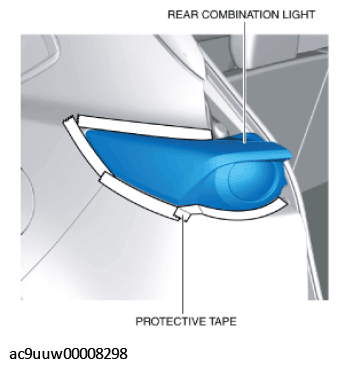

    Fig 4: Affixing Protective Tape To Rear Combination Light
    G11435191Courtesy of MAZDA MOTORS CORP.
  7. Pull the rear combination light in the direction of the arrow shown in the figure and pull out the pin and the hook from the body.

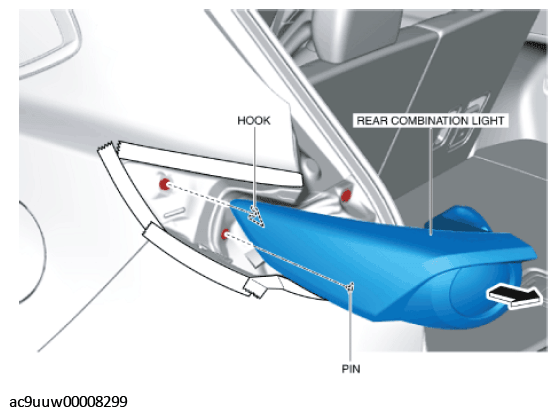

    Fig 5: Pulling Rear Combination Light
    G11435192Courtesy of MAZDA MOTORS CORP.
  8. Pull out the rear combination light short-cord from the hook.

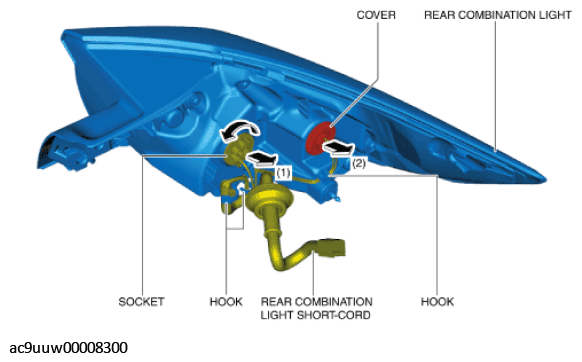

    Fig 6: Pulling Out Rear Combination Light Short-Cord From Hook
    G11435193Courtesy of MAZDA MOTORS CORP.
  9. Turn the socket counterclockwise and remove it in the direction of arrows (1) shown in the figure.
  10. Pull out the cover in the direction of arrow (2) shown in the figure.
  11. Disconnect the connector.

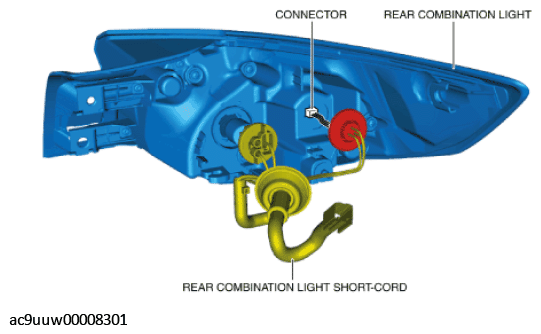

    Fig 7: Rear Combination Light Short-Cord, Rear Combination Light And Connector
    G11435194Courtesy of MAZDA MOTORS CORP.
  12. Remove the grommets.

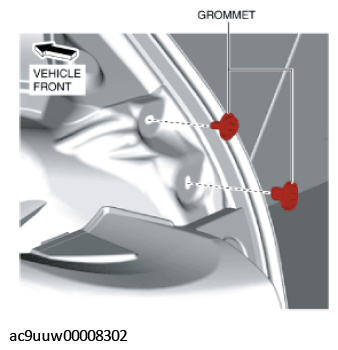

    Fig 8: Rear Combination Light Grommets
    G11435195Courtesy of MAZDA MOTORS CORP.
  13. Install in the reverse order of removal.
