Rear Map Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
CAUTION:
- When inserting the remover tool in the gap between the rear map light and the lens, the remover tool may contact the rear map light and damage it. Apply protective tape to the rear map light before removing the lens from the rear map light.

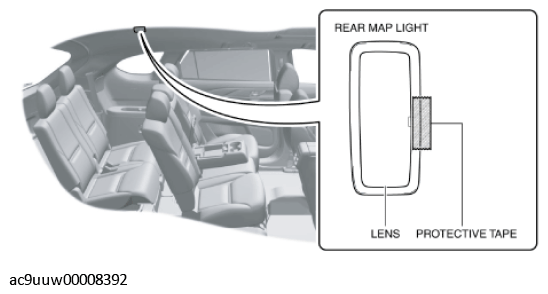

To prevent scratches or damage, affix protective tape to the position shown in the figure.

Fig 1: Affixing Protective Tape To Rear Map Light
Courtesy of MAZDA MOTORS CORP.
Insert the remover tool into the service hole at the position shown in the figure.

Fig 2: Service Hole, Lens And Rear Map Light
Courtesy of MAZDA MOTORS CORP.

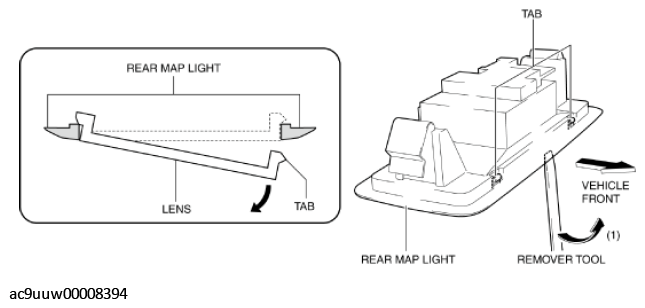

Move the remover tool in the direction of the arrow (1) shown in the figure to detach the lens tabs from the rear map light.

Fig 3: Detaching Lens Tabs From Rear Map Light
Courtesy of MAZDA MOTORS CORP.
Pull out the lens tabs from the rear map light and remove the lens from the rear map light.

Fig 4: Pulling Out Lens Tabs From Rear Map Light
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).
Remove the rear map light bulb.

Fig 5: Rear Map Light And Bulb
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
