Rear Wiper Motor Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    3. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    4. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

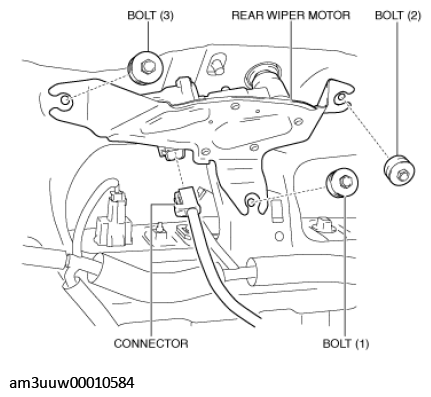

    Fig 1: Disconnecting Rear Wiper Motor Connector And Bolt
    G11453063Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts in the order of (1), (2), and (3). (See REAR WIPER MOTOR INSTALLATION NOTE .)
  5. Pull out the rear wiper motor pin from the outer bushing and remove the rear wiper motor.

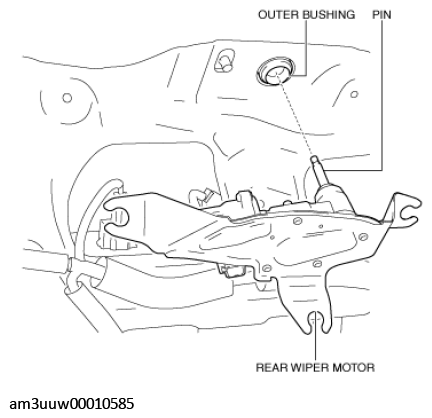

    Fig 2: Pulling Out Rear Wiper Motor Pin From Outer Bushing
    G11453064Courtesy of MAZDA MOTORS CORP.
  6. Press in the outer bushing from the outside of the liftgate.

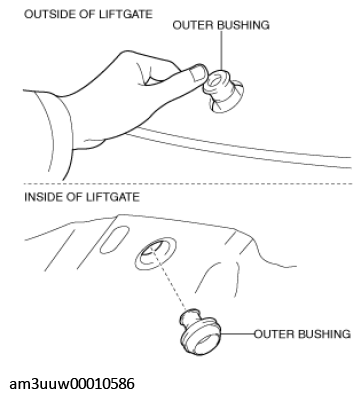

    Fig 3: Pressing Outer Bushing From Outside Of Liftgate
    G11453065Courtesy of MAZDA MOTORS CORP.
  7. Pull the outer bushing from the inside of the liftgate and remove it.
  8. Install in the reverse order of removal.
