Section 18 (Seats)
›
Front Seat Removal/Installation
›
Bolt Installation Note
Bolt Installation Note
WARNING:
This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
Install the bolts in the order shown in the figure.

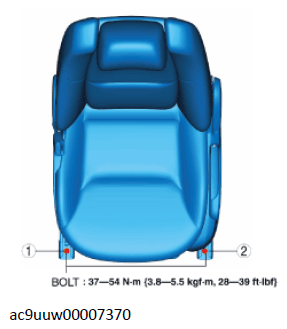

Fig 1: Front Seat Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

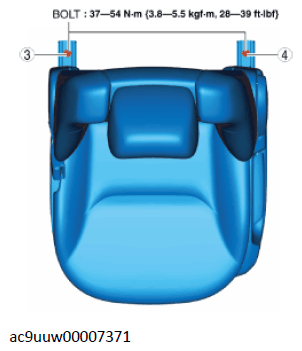

Fig 2: Front Seat Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
