Third-Row Seat Back Frame Disassembly/Assembly

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

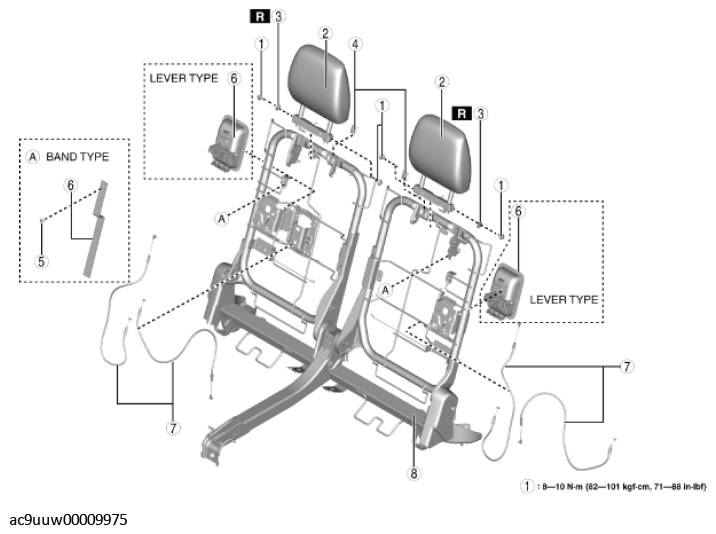

Fig 1: Third-Row Seat Back Frame And Related Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt
2	Headrest
3	Bush
4	Rubber
5	Screw
6	Band(band type) Lever(lever type)
7	Cable
8	Third-row seat back frame

Assemble in the reverse order of disassembly.
