Third-Row Seat Back Trim Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Remove the third-row seat cushion. (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
Move hooks A in the direction of the arrow shown in the figure and detach them from hooks B.

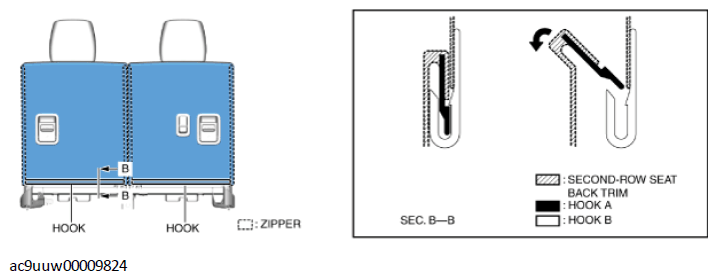

Fig 1: Detaching Third-Row Seat Back Trim Hook A From Hook B
Courtesy of MAZDA MOTORS CORP.
Unzip the zippers.
While pressing the top tether anchor cover tabs in the direction of arrows (1) shown in the figure, move the top tether anchor cover in the direction of arrow (2) and remove it.

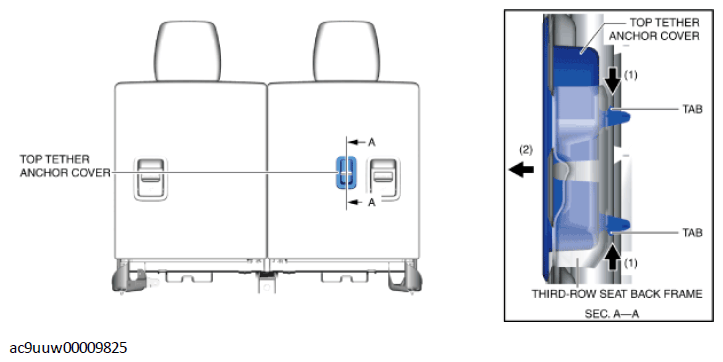

Fig 2: Removing Top Tether Anchor Cover
Courtesy of MAZDA MOTORS CORP.
Remove the cover and then remove the screw.

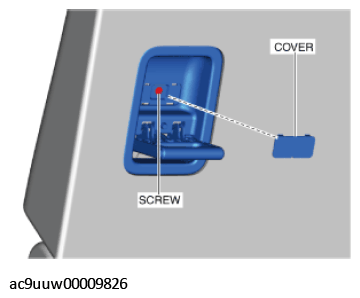

Fig 3: Top Tether Anchor Cover And Screw
Courtesy of MAZDA MOTORS CORP.
Remove the C-rings.

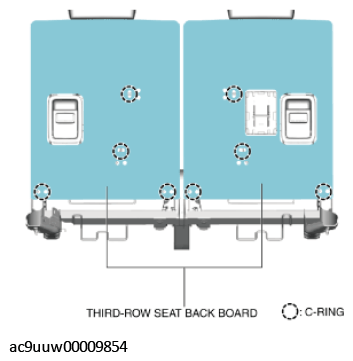

Fig 4: C-Rings Location - Third-Row Seat Back Board
Courtesy of MAZDA MOTORS CORP.
Remove the third-row seat back board.
CAUTION:
- Be careful not to damage the ring C when removing/installing it. If a damaged ring C is used, it could result in improper installation of the third-row seat back board.
- If the ring C is damaged, replace the ring C with a new one.
Remove the C-rings.

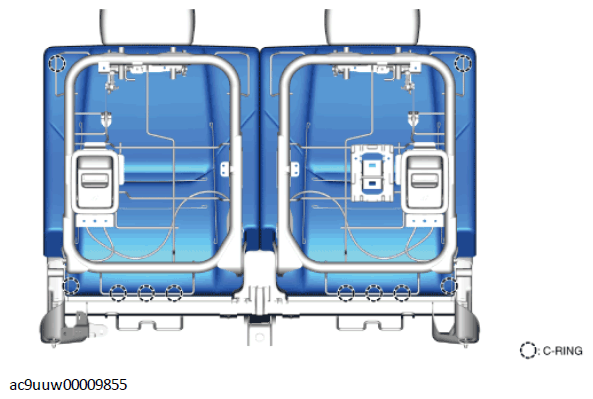

Fig 5: C-Rings Location - Third-Row Seat Back Board
Courtesy of MAZDA MOTORS CORP.
Lift up the third-row seat back trim and third-row seat back pad as a single unit and remove it from the third-row seat back frame.

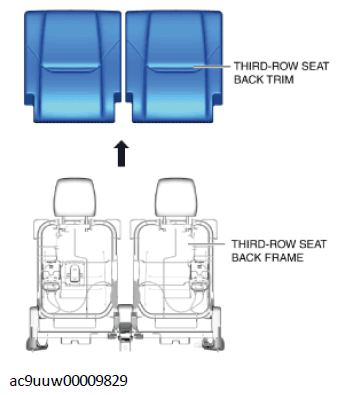

Fig 6: Lifting Up Third-Row Seat Back Trim And Third-Row Seat Back Pad As Single Unit
Courtesy of MAZDA MOTORS CORP.
Remove the C-rings shown in the figure, and remove the third-row seat back trim from the third-row seat back pad.

Fig 7: C-Rings Locations - Third Row Seat Back Trim
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal. (See THIRD-ROW SEAT BACK TRIM INSTALLATION NOTE .)
