Rear Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Special Service Tool (SST)

Mazda SST number Global SST number
49 S033 101 - Dust cover installer	Courtesy of MAZDA MOTORS CORP.

Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL](2WD) .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL](AWD) .)
Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

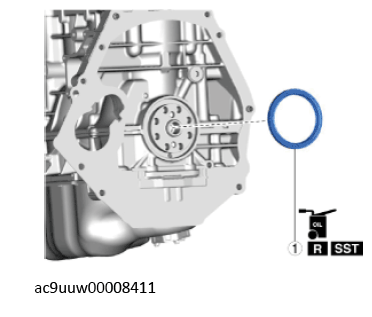

Fig 1: Removing Rear Oil Seal

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear oil seal (See Rear Oil Seal Removal Note .) (See Rear Oil Seal Installation Note .)
