Bolt Removal Note

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolt shown in the figure and lift up the caliper.

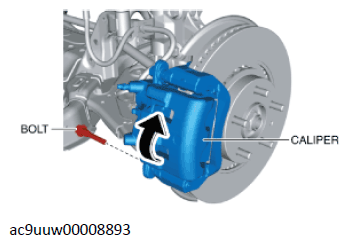

Fig 1: Lifting Up Caliper

Courtesy of MAZDA MOTORS CORP.
