Front Lower Arm Removal/Installation: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal. (See SUSPENSION LINK INSTALLATION NOTE .)
- When replacing the front lower arm, inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)

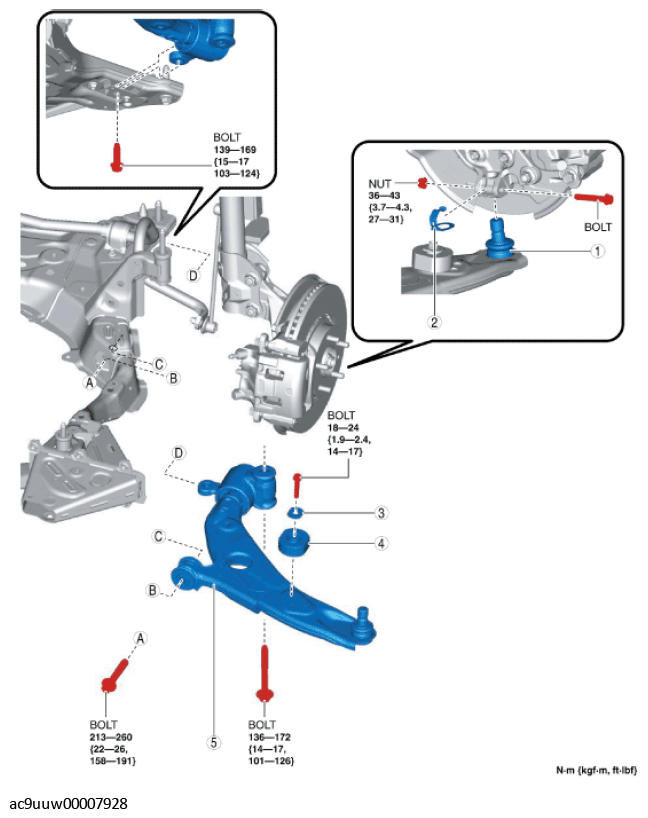

COMPONENT DESCRIPTION
| 1 | Front lower arm ball joint (See Front Lower Arm Ball Joint Installation Note .) |
| 2 | Spacer |
| 3 | Washer |
| 4 | Dynamic damper (See Dynamic Damper Installation Note .) |
| 5 | Front lower arm |
