Blower Unit Disassembly/Assembly

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

Disassemble in the order indicated in the table.

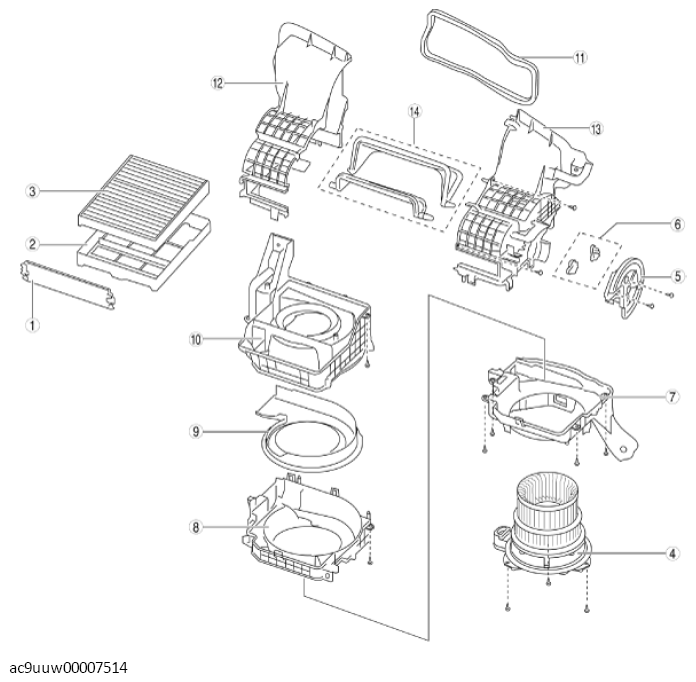

Fig 1: Blower Unit Disassembly/Assembly Sequence

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Cover
2	Air filter case
3	Air filter
4	Front blower motor
5	Air intake actuator
6	Air intake link
7	Blower case F
8	Blower case E
9	Blower case D
10	Blower case C
11	Adhesive polyurethane
12	Blower case B
13	Blower case A
14	Air intake door

Assemble in the reverse order of disassembly.
