Front Blower Motor Inspection: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
- Remove the front blower motor. (See FRONT BLOWER MOTOR REMOVAL/INSTALLATION .)
- Connect the front blower motor connector.
- Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Switch the ignition ON (engine off or on).
- Connect the negative (-) lead of the tester to body ground.

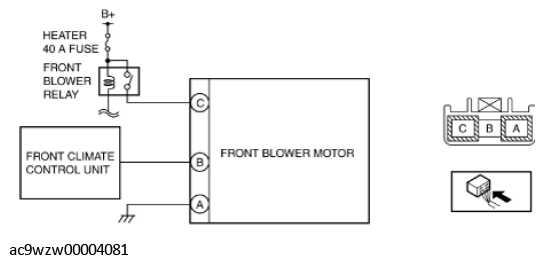

- Insert the positive (+) lead of the tester into each front blower motor terminal.
- Measure the voltage according to the terminal voltage table.
- If there is any malfunction, inspect the parts under "Inspection item (s)".
- If the parts under "Inspection item (s)" are found to be normal, replace the front blower motor. (See FRONT BLOWER MOTOR REMOVAL/INSTALLATION .)
- If there is any malfunction, inspect the parts under "Inspection item (s)".
