Rear Wiper Motor Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    3. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    4. Liftgate recess cover (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    5. Power liftgate (PLG) rear switch (with power liftgate (PLG) system) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
    6. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

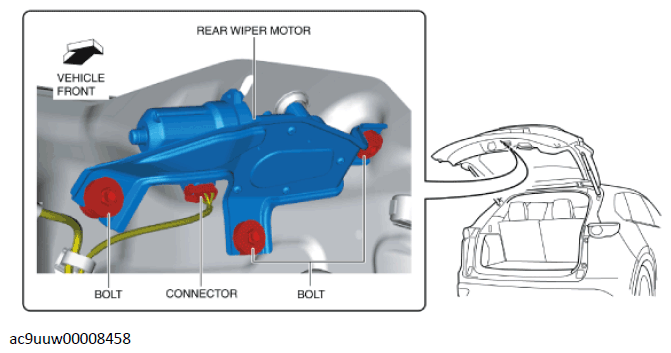

    Fig 1: Rear Wiper Motor Connector Location
    G11432963Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts. (See REAR WIPER MOTOR INSTALLATION NOTE .)
    Fig 2: Pulling Out Rear Wiper Motor Pin From Outer Bushing
    G11432964Courtesy of MAZDA MOTORS CORP.
  5. Pull out the rear wiper motor pin from the outer bushing and remove the rear wiper motor.
  6. Remove the outer bushing.

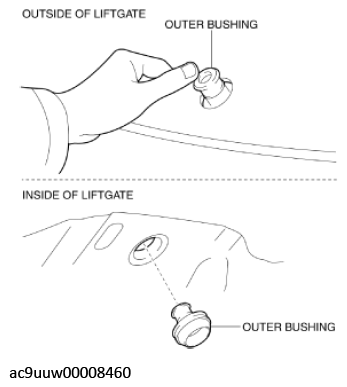

    Fig 3: Removing Outer Bushing
    G11432965Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
